Key SpecificationView More
Switching Capacity
12.8 Tbps
Packet Forwarding Rate
4482 Mpps
Expansion Module Slots
Two power supply module slots, supporting 1+1 redundancy
Three fan module slots, supporting 2+1 redundancy
Three fan module slots, supporting 2+1 redundancy
Dimensions (W × D × H)
442 mm x 450 mm x 88.1 mm (17.40 in. x 17.72 in. x 3.47 in., 1 RU)
Maximum Power Consumption
Max: 600 W
Typical: 410 W
Static: 222 W
Typical: 410 W
Static: 222 W
Ports

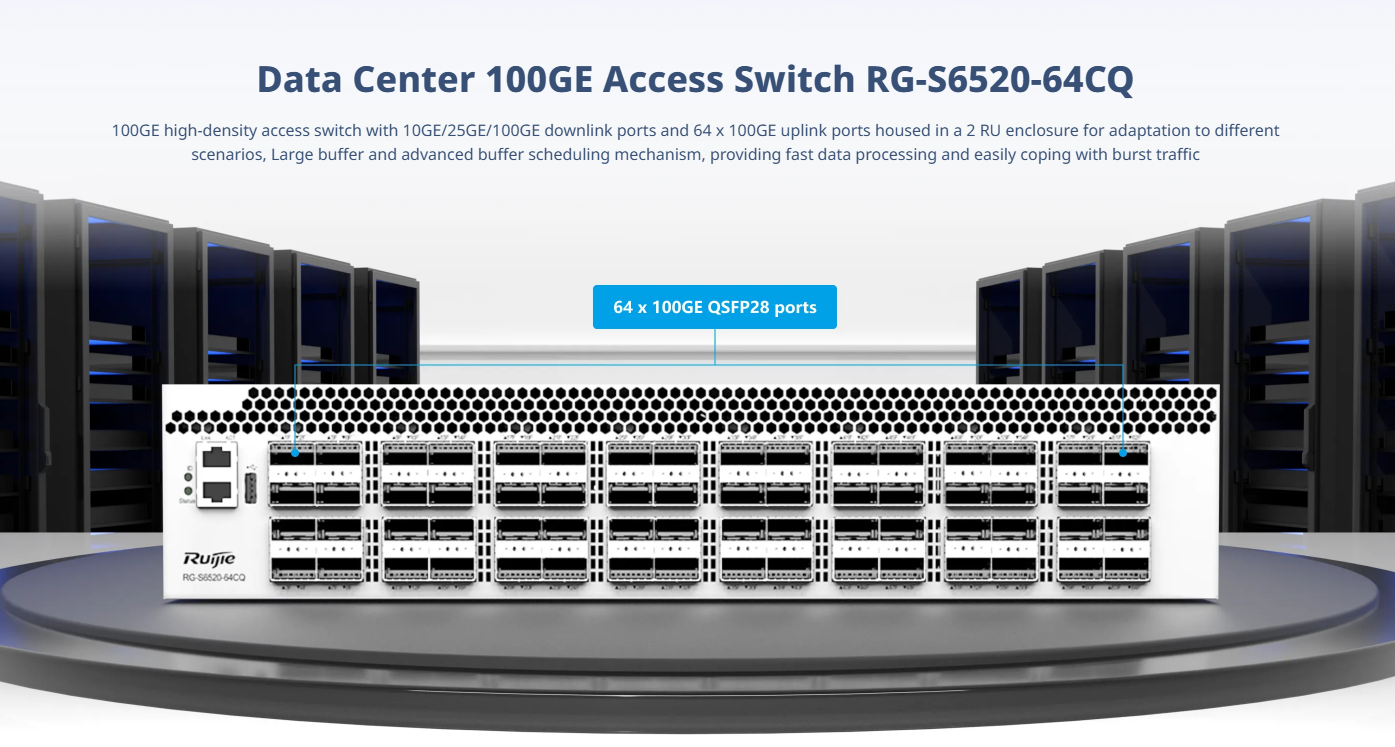

64 x 100GE ports (QSFP28)
Operating Temperature
0 °C to 45 °C (32 °F to 113°F)
Operating Humidity
10% RH to 90% RH
