Descripción
Key SpecificationView More
Switching Capacity
6.4 Tbps
Packet Forwarding Rate
2030 Mpps
Expansion Module Slots
Two power module slots, supporting 1+1 redundancy
Five fan module slots, supporting 4+1 redundancy
Five fan module slots, supporting 4+1 redundancy
Dimensions (W × D × H)
442 mm x 560 mm x 44 mm (17.40 in. x 22.05 in. x 1.73 in., 1 RU)
Maximum Power Consumption
Max: 450 W
Typical: 270 W
Static: 150 W
Typical: 270 W
Static: 150 W

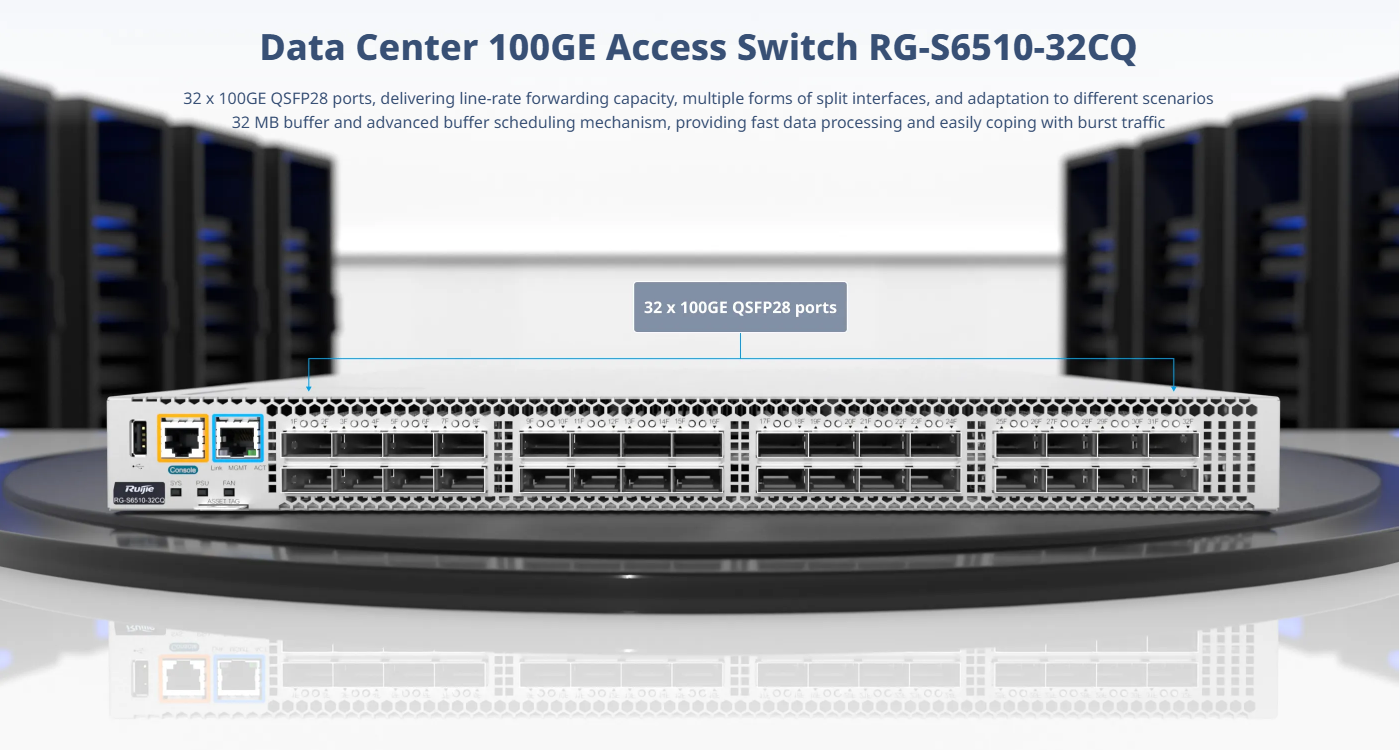

Ports
32 x 100GE QSFP28 ports
Operating Temperature
0°C to 40°C (32ºF to 104ºF)
Operating Humidity
10%RH to 90% RH (Non-condensing)
